Manufactured using medical-grade emulsion polymers, high-shear hot-melt rubber adhesives, and aerospace-level chemical etching. Configured to exact OEM/ODM enterprise specifications.
In global supply chains, name tapes serve two distinct, rigorous industrial functions: high-speed tamper-evident packaging closure (BOPP, Kraft, Gummed Tapes) and extreme-environment brand identification (textile twills, woven elastics, and stainless steel VHB nameplates). Achieving structural permanence requires zero margin for adhesion failure, delamination, or chemical migration.

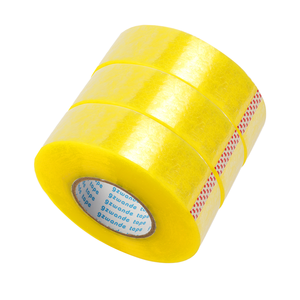

Biaxially oriented polypropylene (BOPP) provides optimal tensile modulus in both machine direction (MD) and transverse direction (TD). We utilize twin-screw extrusion with surface corona treatment reaching ≥ 42 dynes/cm to ensure flawless adhesion anchorage.

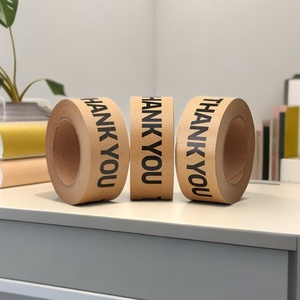

Engineered for circular economy fulfillment hubs, our water-activated and self-adhesive kraft tapes feature cross-directional continuous fiberglass scrim filaments, preventing unauthorized carton penetration without visible fiber tear.

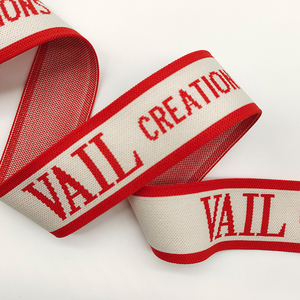

For high-end machinery and apparel, our facility operates optical laser acid-etching alongside Muller electronic jacquard looms. Stainless steel plates bond via 3M VHB viscoelastic acrylic foam, resisting salt fog and thermal shocks up to 150°C.
To eliminate procurement uncertainty, our internal QC laboratory stress-tests every master log roll in accordance with FINAT, ASTM D3330, and PSTC standards prior to export dispatch.
| Substrate Category | Typical Caliper (Thickness) | Peel Adhesion (ASTM D3330) | Tensile Strength (MD) | Thermal Stability Range | Primary Industrial Sector |
|---|---|---|---|---|---|
| BOPP Carton Tape | 38 μm – 65 μm | ≥ 7.2 N / 25mm | ≥ 110 N / 25mm | -10°C to +65°C | E-commerce, FMCG, Cold Chain Logistics |
| ESD Antistatic BOPP | 48 μm – 60 μm | ≥ 6.8 N / 25mm | ≥ 120 N / 25mm | 0°C to +80°C | Semiconductor, Cleanroom Assembly, PCB Packing |
| Eco Self-Adhesive Kraft | 110 μm – 140 μm | ≥ 8.5 N / 25mm | ≥ 135 N / 25mm | -15°C to +70°C | Sustainable Retail, High-End Apparel Packaging |
| Reinforced Gummed (WAT) | 125 μm – 165 μm | Substrate Fiber Destruction | ≥ 210 N / 25mm | -25°C to +90°C | Export Palletizing, High-Theft Cargo Consolidations |
| Stainless Steel Nameplate | 0.30mm – 1.50mm | ≥ 32 N / 25mm (3M VHB) | ≥ 520 MPa (Yield) | -40°C to +150°C | Industrial Pumps, Valve Housings, Heavy Vehicles |
| Jacquard Elastic Webbing | 0.80mm – 2.20mm | N/A (Sewn / Ultrasonic) | Elongation 140-240% | Washable up to 90°C | Sportswear Waistbands, Medical Orthotics, Luggage |
| Herringbone Cotton Tape | 0.25mm – 0.55mm | N/A (Bonded / Stitch) | ≥ 85 N / 15mm | Washable & Dry Clean | Luxury Garment Necklines, Hem Trim, Home Textiles |
Procurement teams shifting budgets to China's leading production lines in 2026 and beyond must balance carbon tariffs, packaging waste regulations (EU PPWR), and supply chain visibility against unit economics.
The European Packaging and Packaging Waste Regulation (PPWR) mandates 100% recyclable mono-material corrugated solutions. The industry is rapidly decommissioning non-recyclable filament PVC tapes in favor of water-soluble starch-coated paper and bio-based PLA films that integrate seamlessly into municipal pulp recycling streams.
Modern custom name tapes are evolving from static logos into connected inventory tracking vectors. High-speed flexo lines now print dynamic serialized GS1 Digital Links, micro-QR codes, and embedded ultra-thin UHF RFID chips directly onto the tape liner, transforming every carton seal into an anti-counterfeiting verification point.
Global environmental mandates are penalizing solvent-based adhesives. Tier-1 Chinese chemical coating facilities are expanding solvent-free UV-curable and synthetic block copolymer (SIS) hot-melt reactors, cutting production carbon emissions by up to 42% while simultaneously boosting initial tack on recycled corrugated liners.
A deep dive into the engineering mechanics separating industrial-grade tape converters from low-tier trading shops.

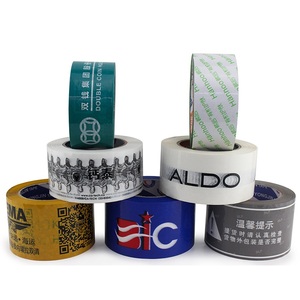

Traditional suppliers print logos onto the outer film layer, exposing inks to friction, scuffing, and atmospheric oxidization during oceanic freight. Our factory deploys high-speed 8-color computer-registered rotogravure presses that print on the inner surface of the transparent BOPP film before the emulsion adhesive coating is applied.
This "sandwich" architecture locks the pigments permanently between the bi-axially oriented film and the pressure-sensitive adhesive. The finished roll delivers zero ink bleed, flawless brand Pantone fidelity, and absolute resistance to solvents, rain, and transit scraping.
Adhesive failure is overwhelmingly driven by inconsistent coat weight. A tape that drops from 22 gsm to 17 gsm in localized spots will delaminate during temperature shifts in transit containers.
Our dual-head precision coating lines utilize servo-driven comma doctor blades and micro-grooved Mayer rods enclosed in ISO Class 8 cleanroom filtration zones. Thermal drying tunnels with 6 independent PID heating zones cure the emulsion adhesive evenly without polymer skinning or bubbling, ensuring an unyielding, predictable shear strength of ≥ 72 hours under 1kg static load.
Combining vertically integrated polymer synthesis, high-volume automated converting, and direct Western export logistics documentation.
From chemical adhesive polymerization and BOPP film orientation to precision slitting, weaving, and metal etching, every stage is contained within our owned facility, cutting out middlemen markups.
Our dedicated testing station performs 180° peel adhesion, loop tack, rolling ball initial tack, tensile elongation, and accelerated weather aging tests on every production batch before release.
We bridge the gap for growing brands: high-mix low-MOQ runs for kraft and BOPP starting as low as 50–100 rolls, with physical prototype samples dispatched within 3–5 working days.
Complete export management: FOB, CIF, or DDP direct to your distribution centers across the USA, UK, EU, Canada, and Australia, accompanied by CO, Form A, RoHS, and MSDS documentation.
Essential technical, commercial, and regulatory guidance for international buyers, sourcing directors, and packaging engineers.
For standard BOPP and self-adhesive kraft tapes with custom logo printing, our entry-level MOQ starts at 50 to 100 rolls for digital or low-run flexographic orders. For rotogravure sandwich-printed orders requiring custom copper plate cylinders, the typical minimum volume is 500 to 1,000 rolls or 1 master log roll. Custom stainless steel VHB nameplates start at 100 units, while jacquard woven elastic name tapes start at 500 meters.
For gravure printing, each individual color in your design requires an electro-engraved copper cylinder. Cylinder fees range from $60 to $120 per color depending on roll width. This is a one-time charge: cylinders are cleaned, anti-corrosion treated, and cataloged in our climate-controlled vault for zero-cost re-orders over a 24-month rolling period. For standard flexo and rubber plate runs, plate fees are significantly lower ($25-$45/color).
Yes. Standard water acrylic adhesive operates reliably between 0°C and 65°C. For cold storage and frozen food logistics (-25°C to +5°C), we formulate customized low-Tg solvent acrylic or high-tack synthetic rubber adhesives. For humid equatorial climates, our hot-melt rubber formulations feature micro-crystalline tackifiers that prevent hydrolytic plasticization and adhesive slip on high-recycled content corrugated cartons.
Water-activated tape (WAT), also called gummed tape, uses a dry, natural cornstarch or animal glue backing that triggers upon water hydration. Once applied, it chemically fuses to the cellulose fibers of the carton, forming a permanent, tamper-evident structural bond. Self-adhesive kraft tape utilizes a pre-coated pressure-sensitive rubber or acrylic adhesive with a silicone release liner or treated backing, dispensing instantly by hand without requiring water dispensing hardware.

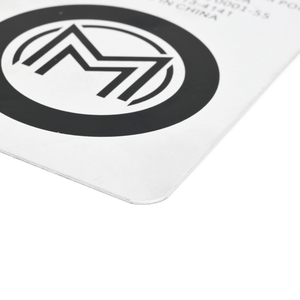

Our industrial nameplates feature genuine 3M 5952, 4910, or 4611 VHB (Very High Bond) closed-cell acrylic foam tape. This viscoelastic foam backing absorbs vibration, fills microscopic surface imperfections on powder-coated or cast metals, and resists continuous operating temperatures from -40°C to +150°C. It completely replaces mechanical rivets and screws, preventing moisture ingress and galvanic corrosion.
We calibrate our spectrophotometers against the Pantone Formula Guide Solid Coated & Uncoated standards (Delta E ≤ 1.5). Because transparent BOPP, natural brown kraft paper, combed cotton, and etched steel absorb light differently, our color chemists generate custom ink formulations with substrate-specific base opacifiers. Pre-production drawdowns or physical strike-off proofs are sent for physical customer sign-off prior to full mass runs.
Physical custom pre-production samples require 3 to 6 working days (including plate production, coating setup, and converting). Upon sample approval and deposit confirmation, bulk production orders of 500 to 5,000 rolls ship within 10 to 14 business days. High-volume container loads (20ft / 40ft HQ) are fulfilled within 18 to 22 calendar days through Ningbo, Shanghai, or Shenzhen maritime ports.

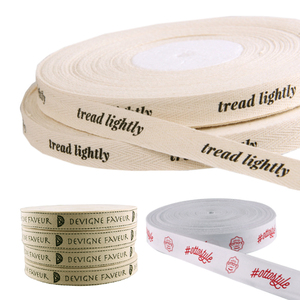

Yes. All cotton neck tapes, twill bindings, and knitted elastic name bands are manufactured in compliance with Oeko-Tex Standard 100 Class I (safe for babies and toddlers). They are completely free from azo dyes, formaldehyde, heavy metals, nickel, and phthalates, and comply with REACH Annex XVII and the US Consumer Product Safety Improvement Act (CPSIA).
Tapes should be stored in their original multi-wall polybag packaging at temperatures between 15°C and 25°C (59°F to 77°F) with relative humidity maintained at 45%–55%. Rolls must be kept away from direct UV sunlight, heat radiators, and ozone-generating electrical transformers. Under these recommended conditions, our BOPP and self-adhesive kraft tapes retain 100% of their peel and tack specifications for 18 to 24 months from the manufacture date.
Yes. We regularly supply packaging distributors, procurement aggregators, and 3PL fulfillment chains worldwide. We can produce custom-branded cardboard cores (printed inner paper tubes), custom individual shrink-wrap labels with your company barcode, branded outer master cartons, and provide neutral blind drop-shipping documentation directly to your end-client without revealing our factory identity.
Eliminate intermediaries. Tap directly into China's advanced polymer coating lines, laser etching workshops, and high-speed jacquard looms. Request our complete 2026 comprehensive industrial catalog, physical sample swatches, or an itemized factory-direct FOB/CIF quotation within 2 hours.
